Coupling WEBER "EL"

Description

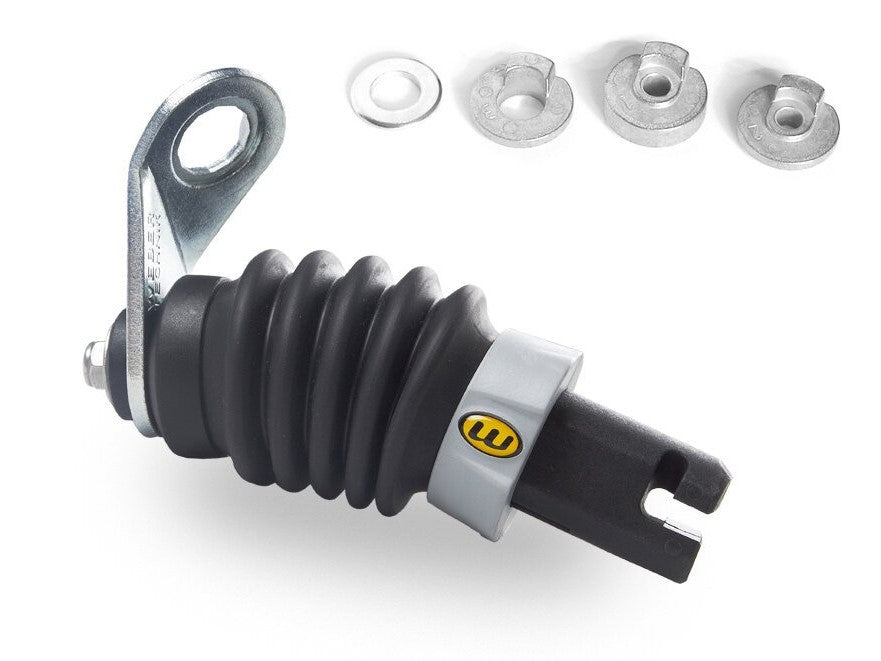

The Weber e-coupling was developed with the aim of fitting as many bikes as possible. It is fixed to the left rear dropout with the quick release, the screw axle or the Weber replacement thru axle. A polygon insert secures the coupling against twisting and is used to adjust the angle of the coupling.

Features

• Compatible with many frame shapes
• Weber bayonet lock
• for all wheel sizes

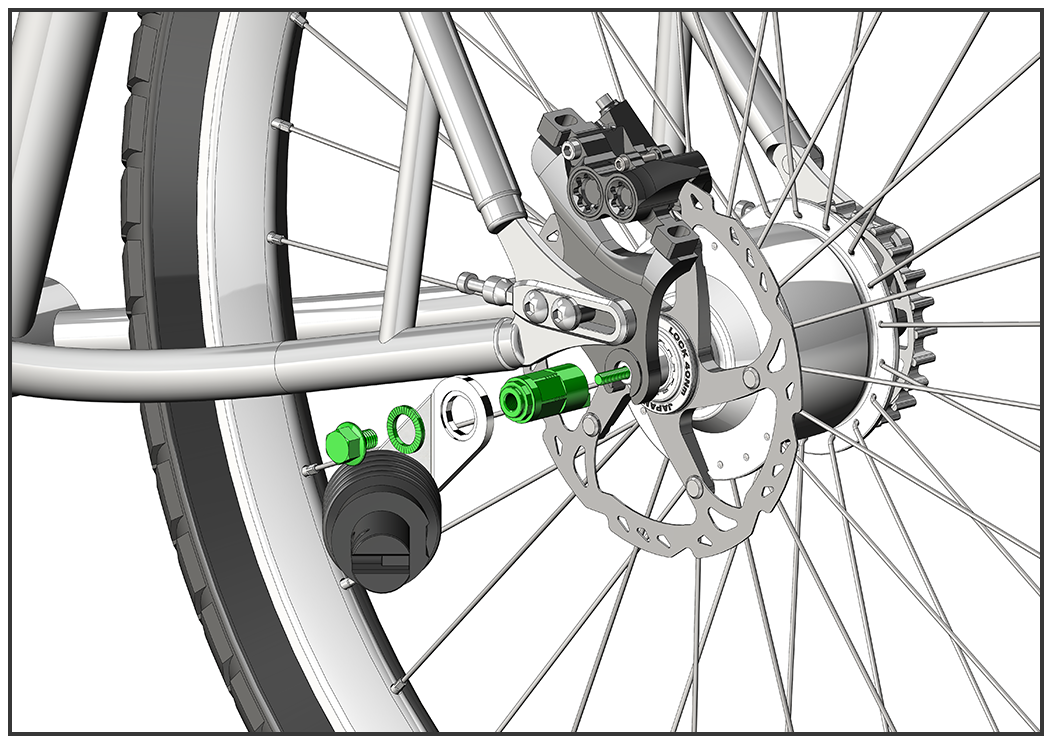

• for screw and quick release axles

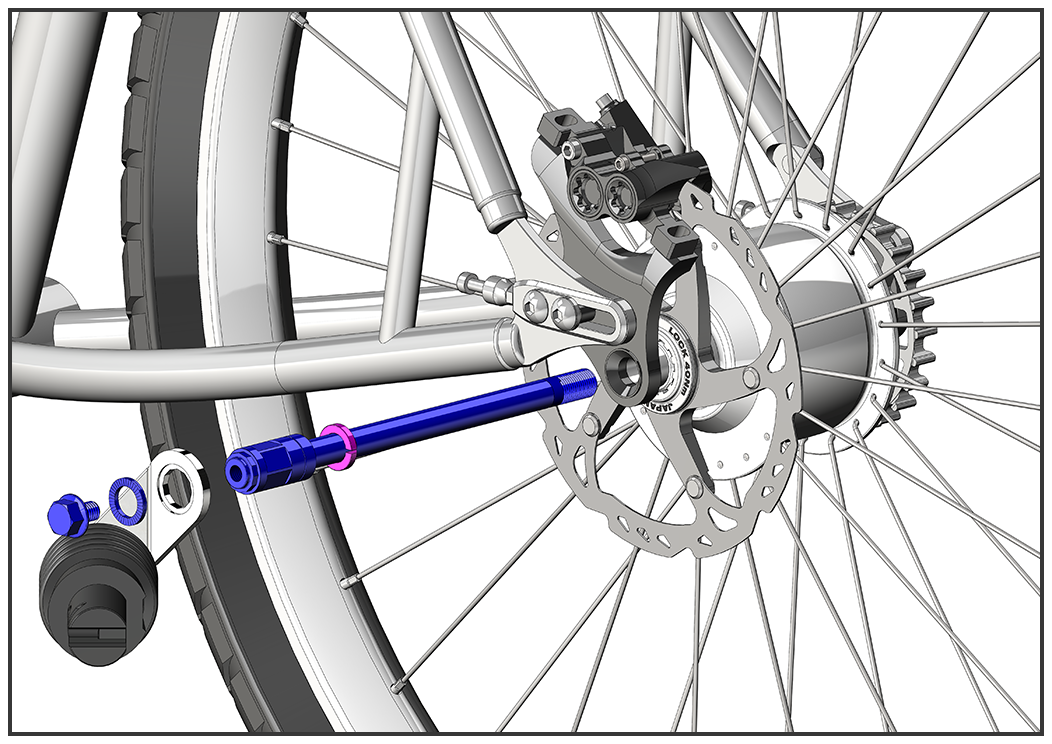

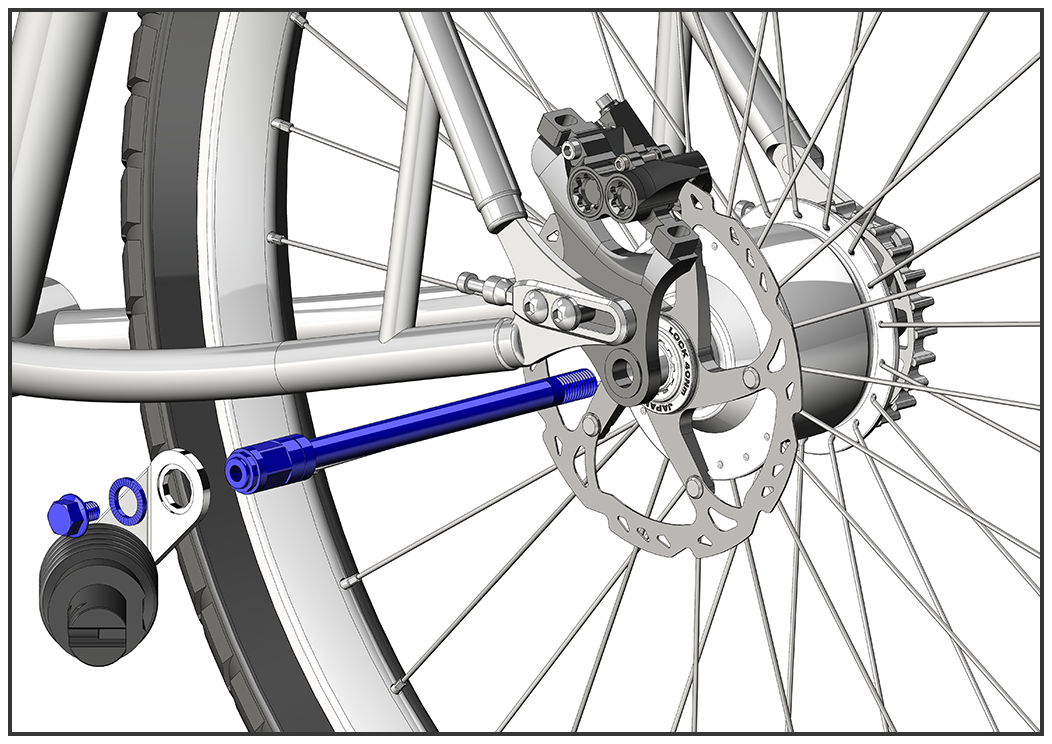

• for 12mm thru axles (original thru axle is exchanged for Weber thru axle)
• can usually be installed without tools
• Only high-quality, non-rusting materials
• low weight (192 grams)

Sometimes thicker special polygons for quick-release axles, special polygons for hub gears or the X12 replacement axle from Weber are required. You can get special solutions directly from weber Products & Components: Shop | Weber technique

Safety instructions

• For safety reasons, a harness with a metal clasp must be fitted to the drawbar. This is the case with the drawbar of the HAUTOO model "One" bicycle trailer.

• Only suitable for cargo trailers, up to a towing capacity of 80 kg. The maximum permissible static vertical load at the coupling point is 6.5 kg.
• Only approved for bicycles and pedelecs (max. 25 km/h), not for S-pedelecs or e-bikes from 25 km/h.
• An e-coupling cannot be fitted to rear-wheel motors.

• For safety reasons, we generally advise you to have the clutches fitted to the bicycle by your specialist dealer.

The responsibility in terms of product liability for the entire bicycle trailer system and its correct function lies with the end user!
