HAUTOO "DIY" bicycle cargo trailer kit with 16" Big Apple tires

Do you have your own idea for your dream trailer? With the "DIY" model, you can realize it without spending a long time searching for suitable components.

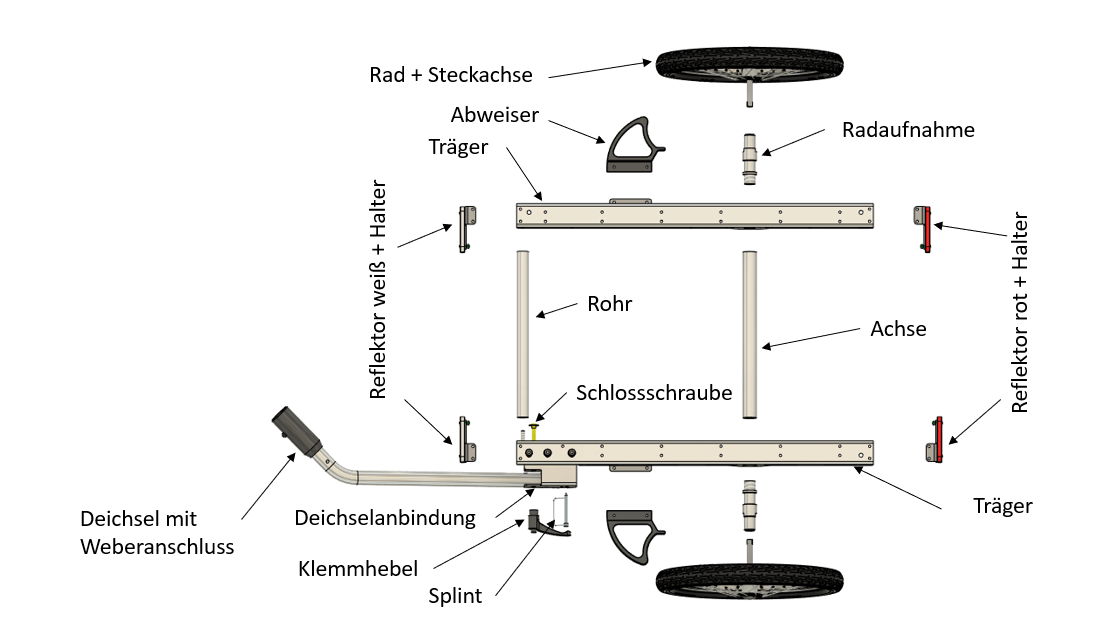

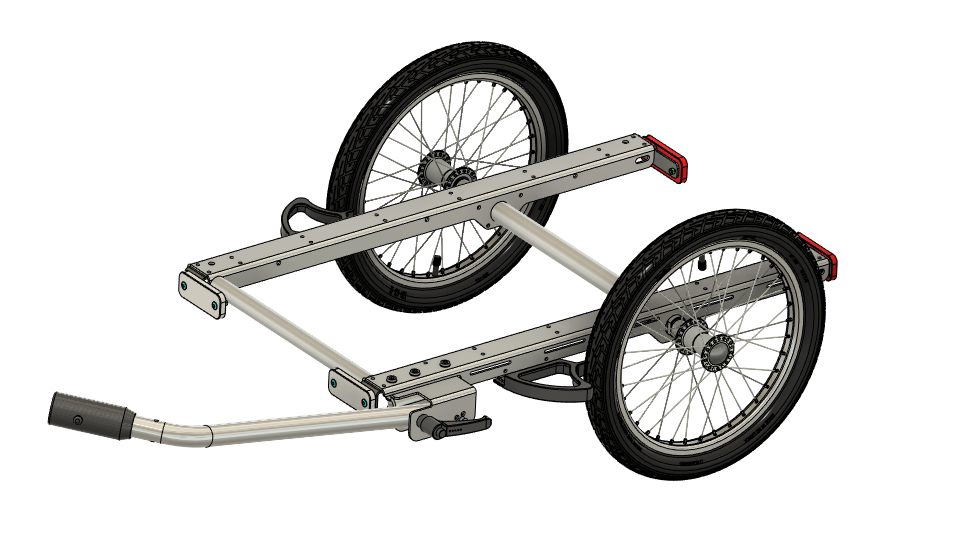

Our "do-it-yourself" model offers a complete chassis kit. Two robust U-beams are connected by a stable axle to accommodate the wheels, achieving a very high load-bearing capacity. The supports are provided with 5 mm holes for attaching your custom setup.

The sophisticated drawbar mount and the axle with removable wheels have already proven themselves in the "ONE" model.

Included in delivery is a sturdy drawbar with a Weber coupling connection. The drawbar can be adjusted to fit your bike's wheel size, from 20 to 29 inches. Deflectors and reflectors are also included.

With a total weight of only 5.5 kg, you don't have to worry about your trailer being too heavy, even if you plan on building a larger structure.

The chassis is not torsionally rigid, so the torsional rigidity must be provided by the body.

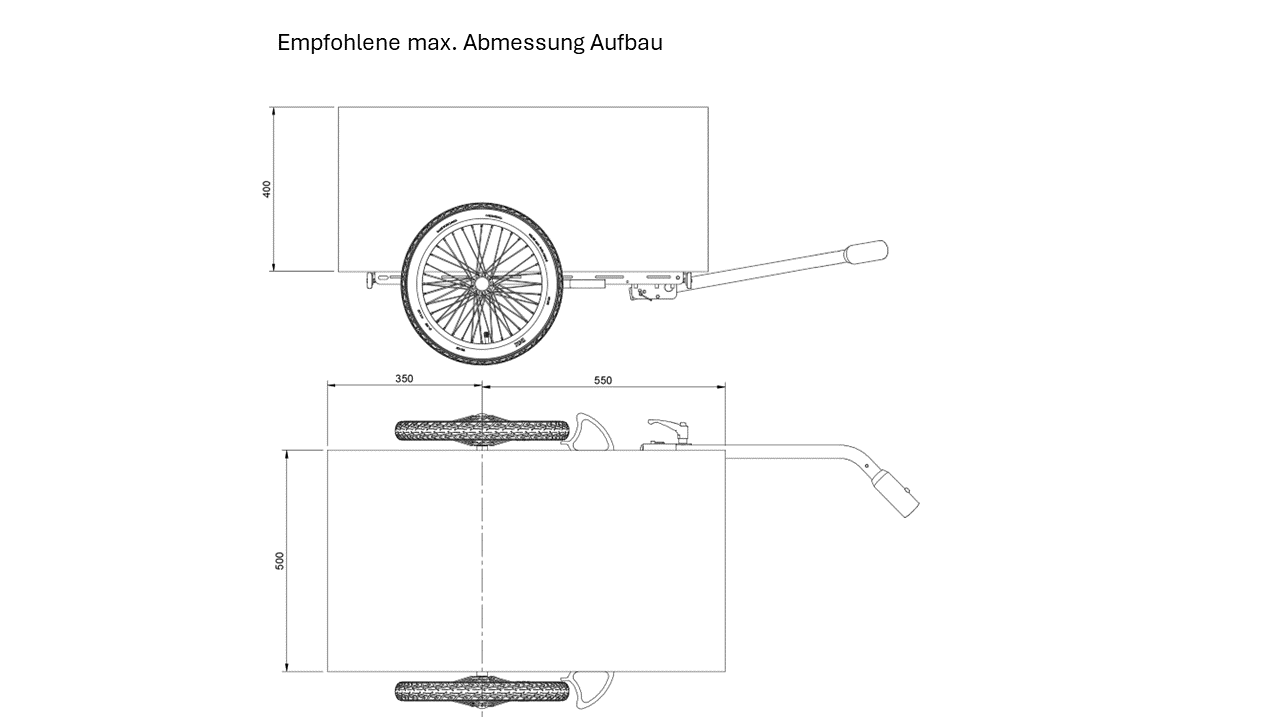

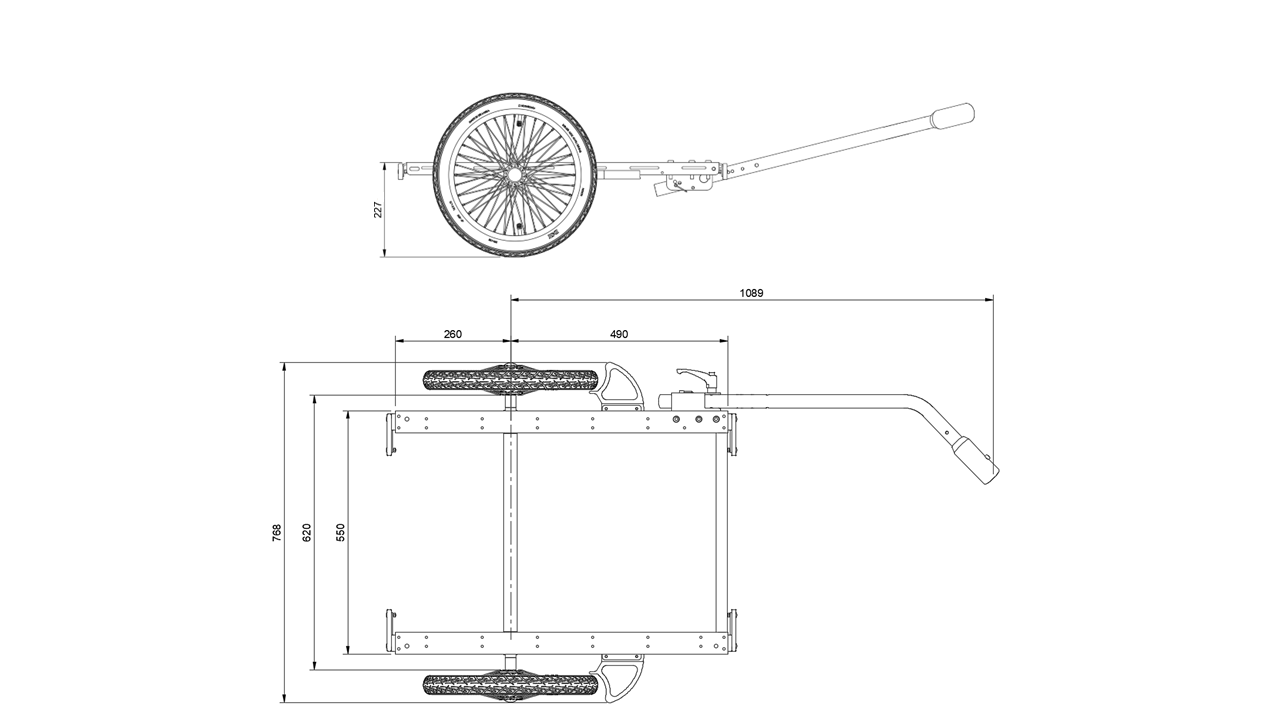

The maximum width between the wheels is either 50 cm or 60 cm. For the 50 cm wide version, the drawbar length is 50 cm, while for the 60 cm wide version, it is approximately 80 cm.
